MIL-STD-290H

The sequence and location of marking elements as shown in this figure are recommended but are not mandatory.  The data markings and location may be varied to meet marking requirements.

.

Notes:

1.   If container is too small to accommodate address labels on identification marked side, apply address labels onto opposite side of container.  When shipments are palletized, address markings are not required on individual containers

2.   See 5.10.13.  Shelf life markings may be placed on the end when space is not available on the side.

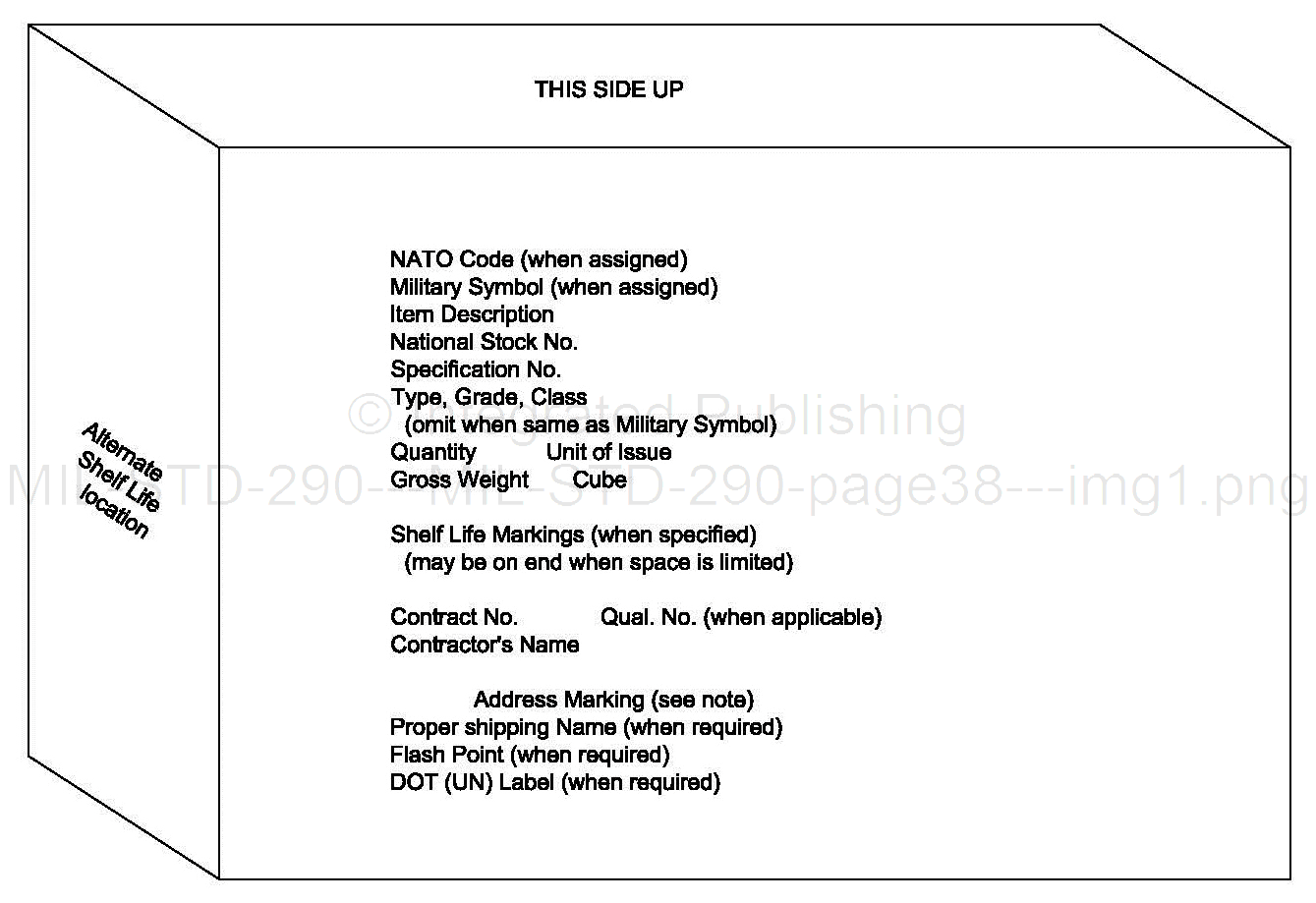

FIGURE 5.  Marking of fiberboard exterior packs (military and commercial).

31
